Large load and gasoline power fixed-wing drone VF80P
Large load and gasoline power fixed-wing drone VF80P
Product Overview SKYWING VF80P is the vertical take-off and landing(VTOL) fixed-wing UAV with hybrid power. It adopts a composite aerodynamic layout of quad-rotors and fixed wings, combines the advantages of VTOL of the quad-rotors models and the long range of the fixed-wing models. Flexible and can adapt to various complex take-off and landing conditions. Hybrid power with Fuel and Battery,achieve a long endurance of more than 10 hours,which is widely used in inspection, emergency communication and other fields. Performance Parameters Fuselage Length 2.58 m Wingspan 4.8 m Max payload 30 kg Maximum take-off weight 90 kg Endurance 2h@30kg payload 6h@20kg payload Cruising speed 100~120 km/h(27~33m/s) Max fuel capacity 25L Maximum flight altitude 5000m Control radius: 200-400km (depending on
Procurement note: Final configuration, selected variant, payload compatibility, export/compliance requirements, warranty, lead time, and packing details should be confirmed before purchase.
Request a Quote Browse Catalog
Product Overview

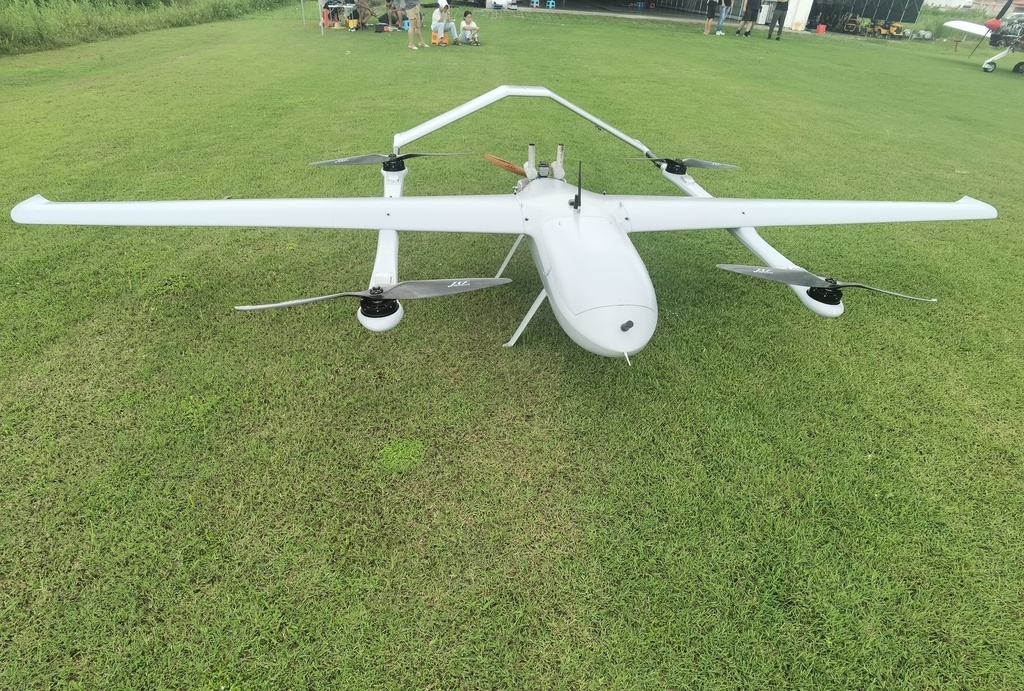

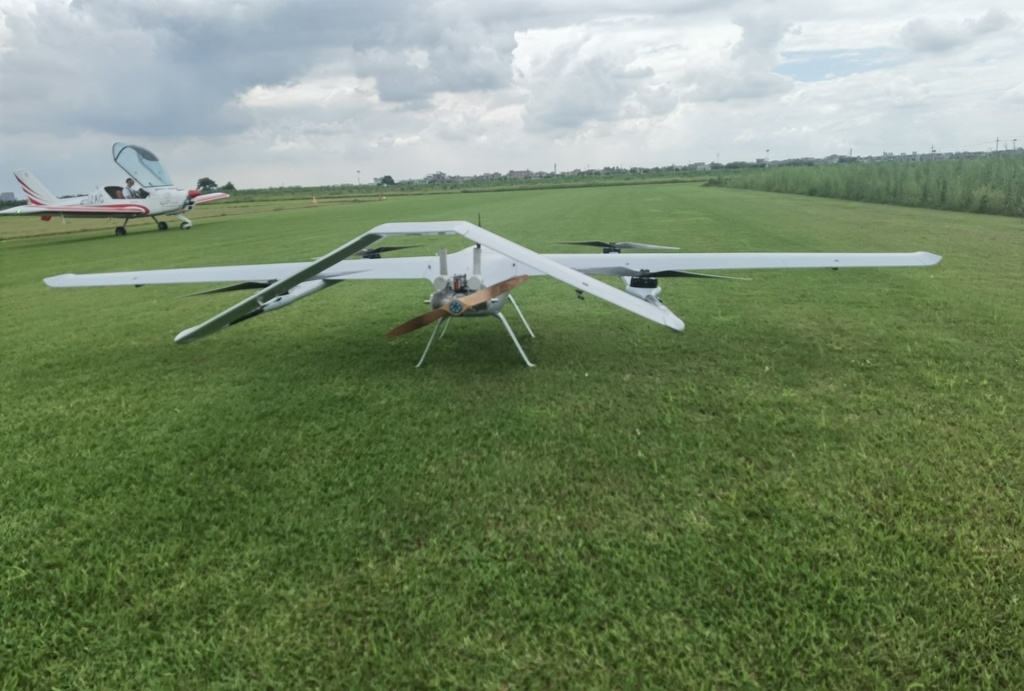

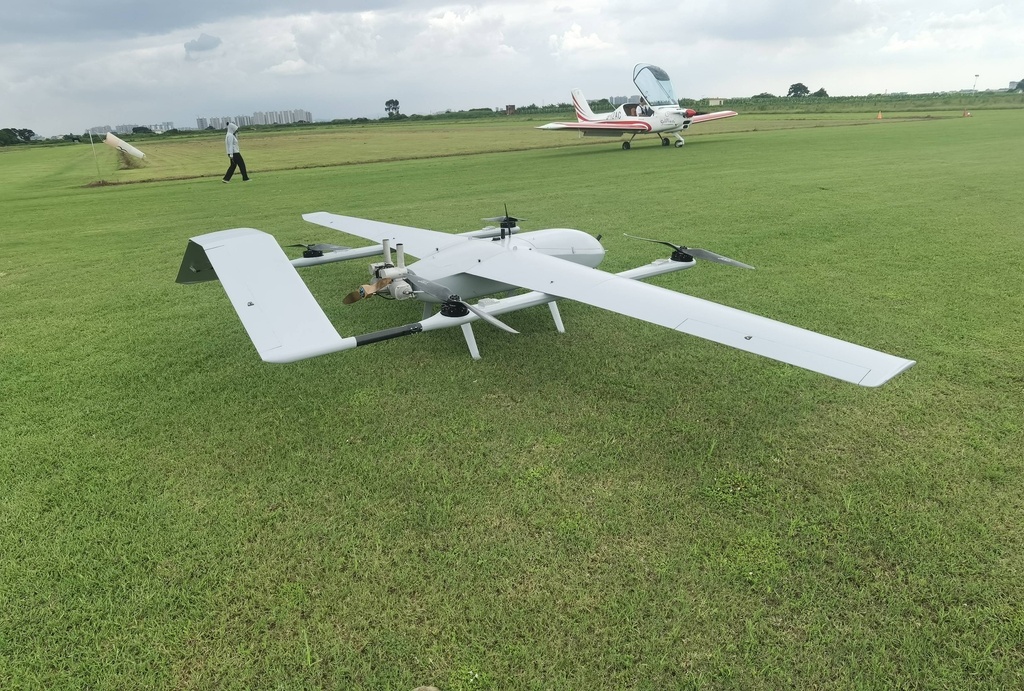

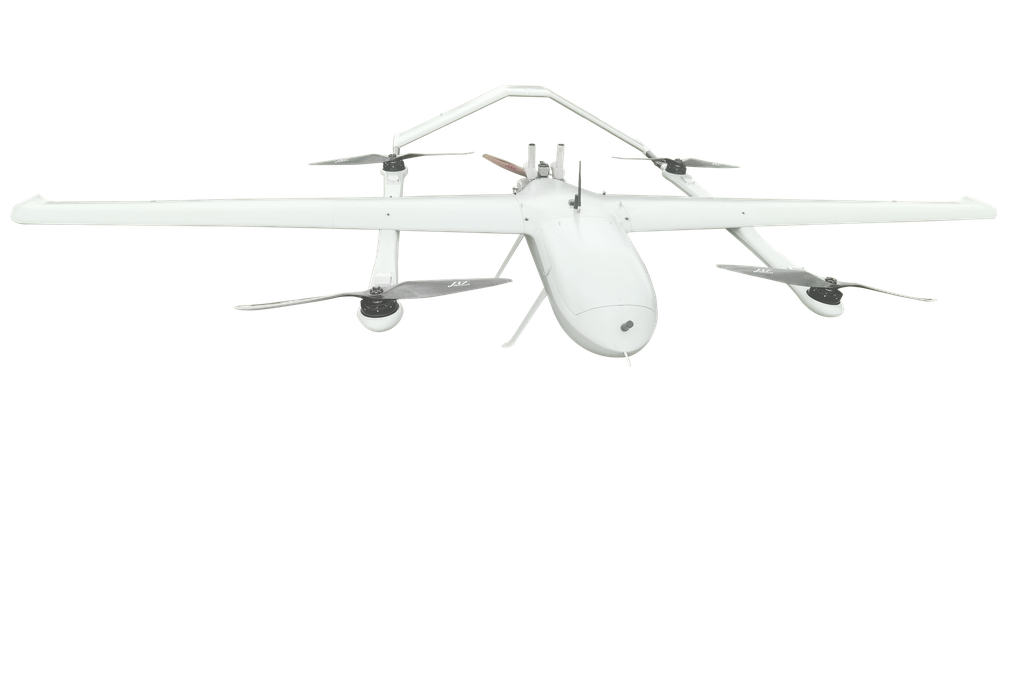

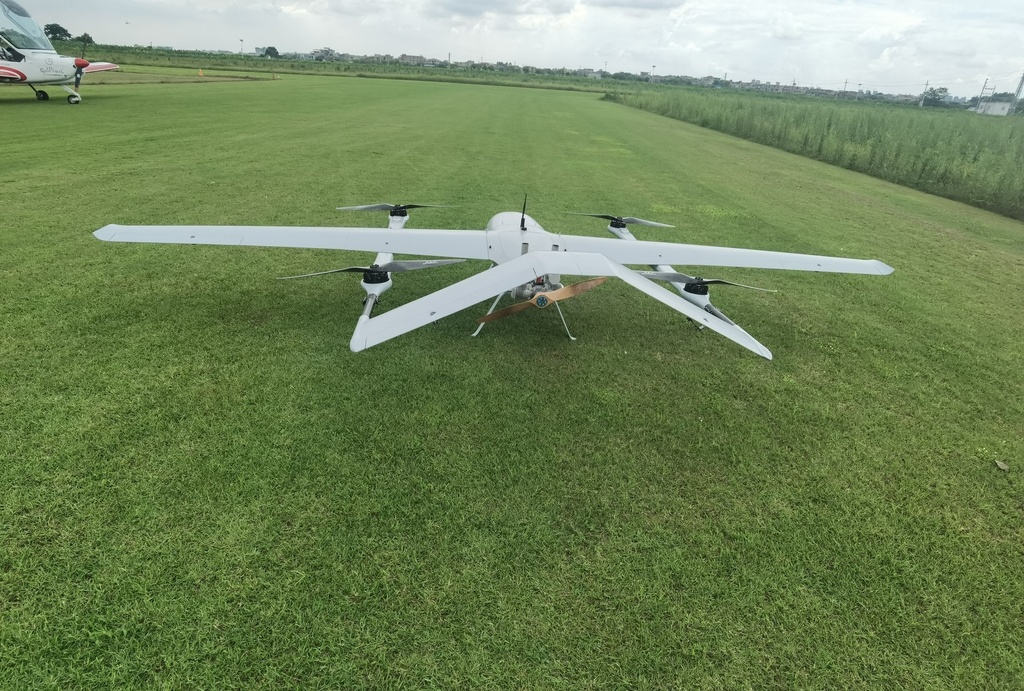

SKYWING VF80P is the vertical take-off and landing(VTOL) fixed-wing UAV with hybrid power.
It adopts a composite aerodynamic layout of quad-rotors and fixed wings, combines the advantages of VTOL of the quad-rotors models and the long range of the fixed-wing models. Flexible and can adapt to various complex take-off and landing conditions.
Hybrid power with Fuel and Battery,achieve a long endurance of more than 10 hours,which is widely used in inspection, emergency communication and other fields.
Performance Parameters
|
Fuselage Length |
2.58m |
|
Wingspan |
4.8m |
|
Max payload |
30kg |
|
Maximum take-off weight |
90kg |
|
Endurance |
2h@30kg payload 6h@20kg payload |
|
Cruising speed |
100~120km/h(27~33m/s) |
|
Max fuel capacity |
25L |
|
Maximum flight altitude |
5000m |
|
Control radius: |
200-400km (depending on fuel capacity) |
|
Operating temperature |
-10℃-45℃ |
|
Waterproof class |
IP54 |
|
Maximum wind resistance |
12m/s(level 6) |
|
Aviationp packaging boxsize |
1.95m*0.92m*0.71m |
Our common configuration components for reference:
Specifications
| Platform Type | VTOL fixed-wing UAV |
| Use Case | Survey, inspection, mapping, and long-endurance field operations |
| Minimum Order | 1 set |
