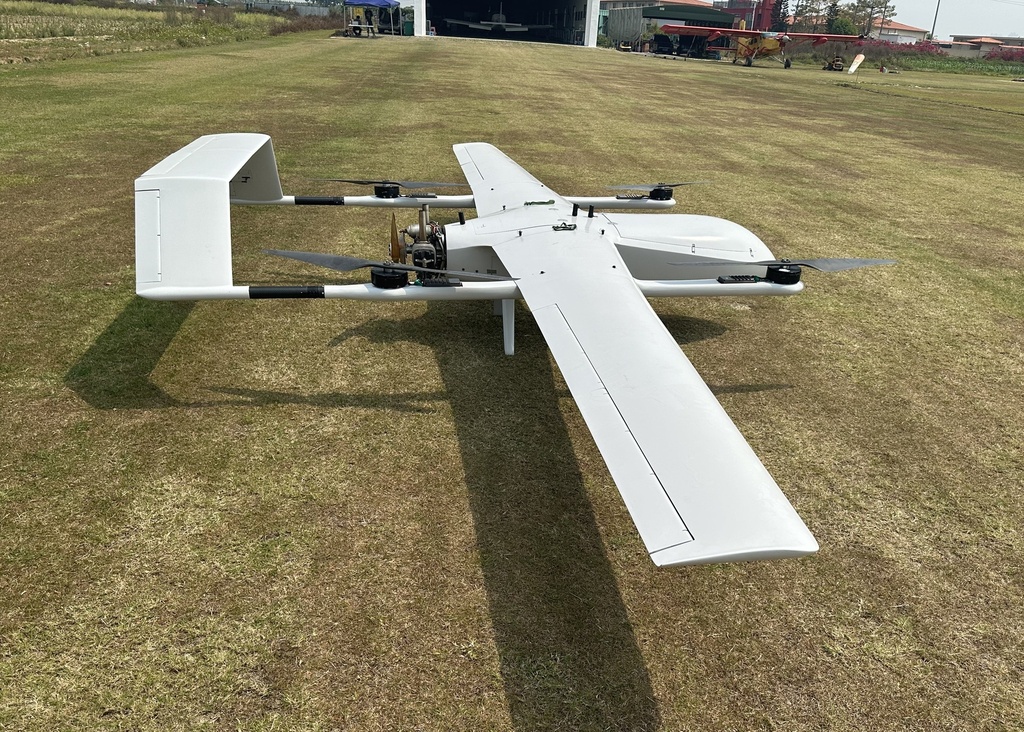

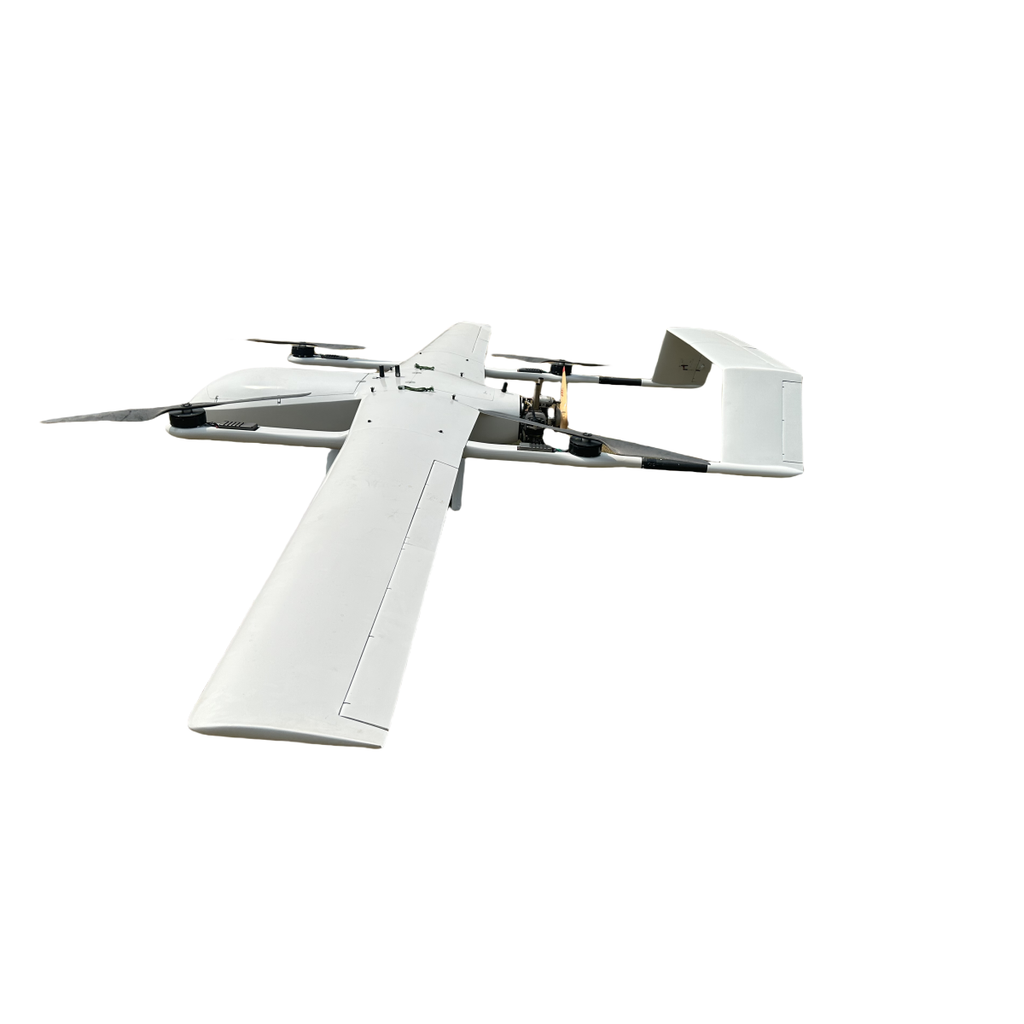

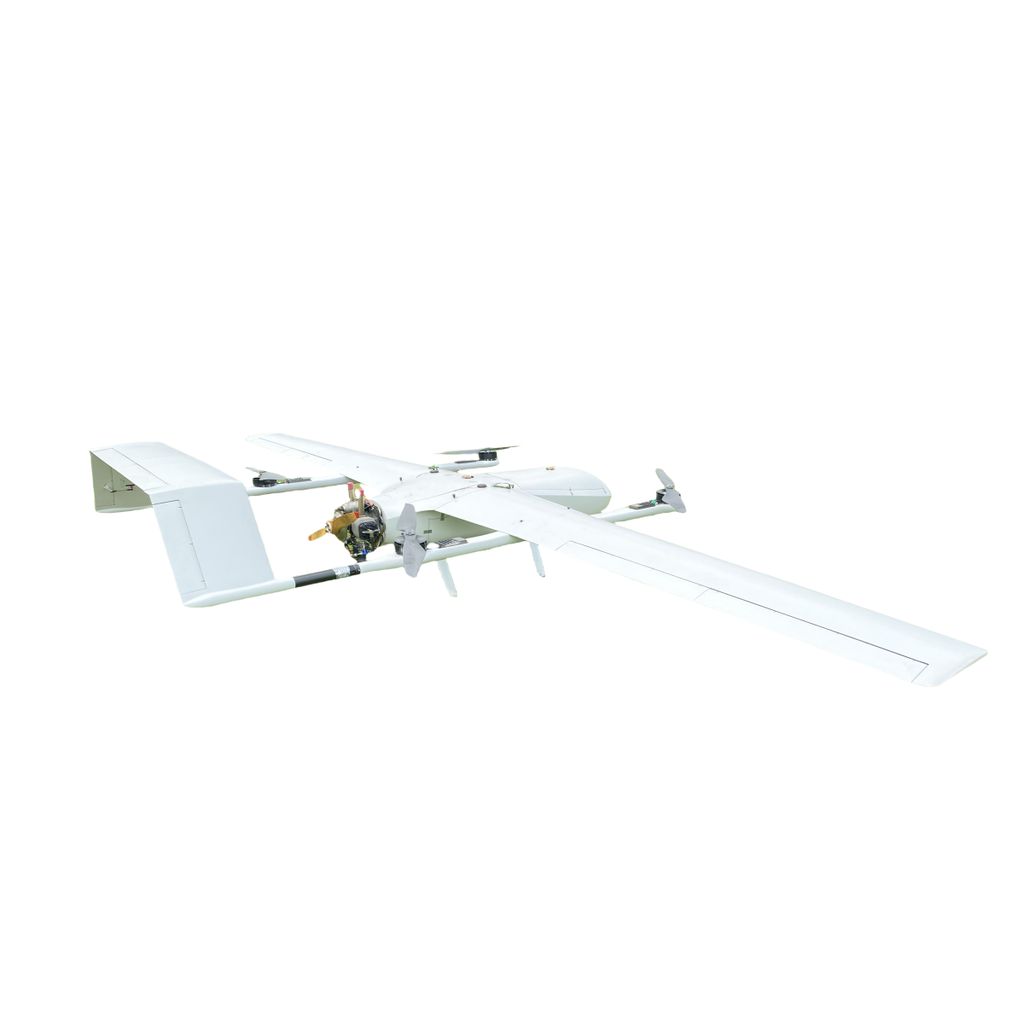

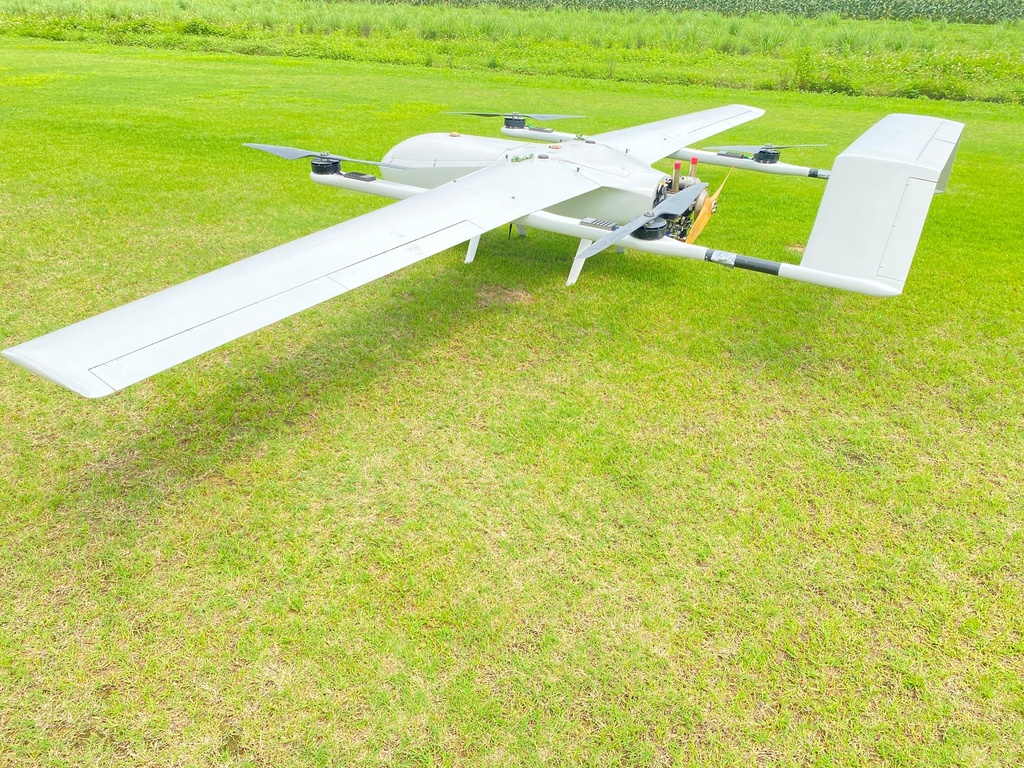

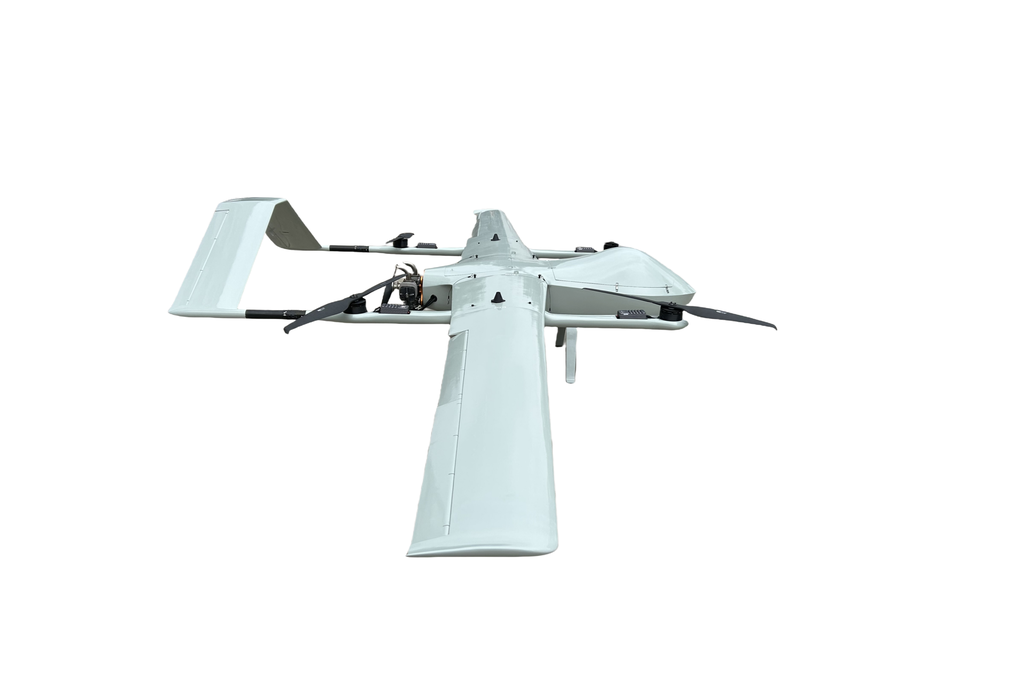

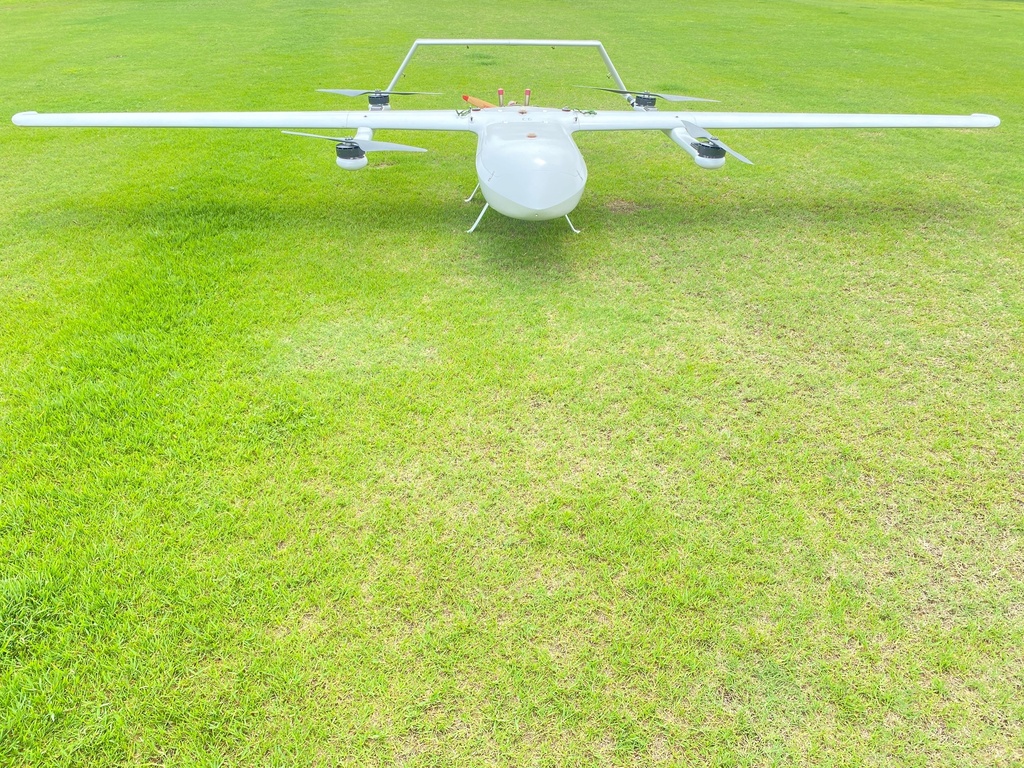

Large payload, long endurance commercial UAVs VF150P
Large payload, long endurance commercial UAVs VF150P
Product Overview SKYWING VF150P VTOL Fixed wing UAV, adopts a composite aerodynamic layout of quad-rotors and fixed wings, which is stable and reliable. It is specifically developed for emergency disaster relief, emergency material delivery and other application scenarios with the characteristics of high load capacity, multitasking, and long endurance. Performance Parameters Fuselage Length 3m Wingspan 6m Max payload 50kg Maximum take-off weight 150 kg Endurance 5h@30kg payload Cruising speed 120 km/h(27~33m/s) Max fuel capacity 25L Maximum flight altitude 5000m（林巴赫275 EFI Engine） 6200m（DLA360 EFI Engine） Control radius: 200-400km (depending on fuel capacity) Operating temperature - 10℃-45℃ Waterproof class IP54 Maximum wind resistance 12 m/s (level 6) Aviation p p ackaging b oxsize Our co
Procurement note: Final configuration, selected variant, payload compatibility, export/compliance requirements, warranty, lead time, and packing details should be confirmed before purchase.
Request a Quote Browse Catalog
Product Overview
SKYWING VF150P VTOL Fixed wing UAV, adopts a composite aerodynamic layout of quad-rotors and fixed wings, which is stable and reliable.
It is specifically developed for emergency disaster relief, emergency material delivery and other application scenarios with the characteristics of high load capacity, multitasking, and long endurance.
Performance Parameters
|
Fuselage Length |
3m |
|
Wingspan |
6m |
|
Max payload |
50kg |
|
Maximum take-off weight |
150kg |
|
Endurance |
5h@30kg payload |
|
Cruising speed |
120km/h(27~33m/s) |
|
Max fuel capacity |
25L |
|
Maximum flight altitude |
5000m（林巴赫275 EFI Engine） 6200m（DLA360 EFI Engine） |
|
Control radius: |
200-400km (depending on fuel capacity) |
|
Operating temperature |
-10℃-45℃ |
|
Waterproof class |
IP54 |
|
Maximum wind resistance |
12m/s(level 6) |
|
Aviationp packaging boxsize |
|
Our common configuration components for reference:
Specifications
| Platform Type | Petrol-powered VTOL fixed-wing |
| Launch Mode | Vertical takeoff and landing |
| Use Case | Cargo delivery and logistics |
| Minimum Order | 1 set |
| Payload Class | 15 kg |
