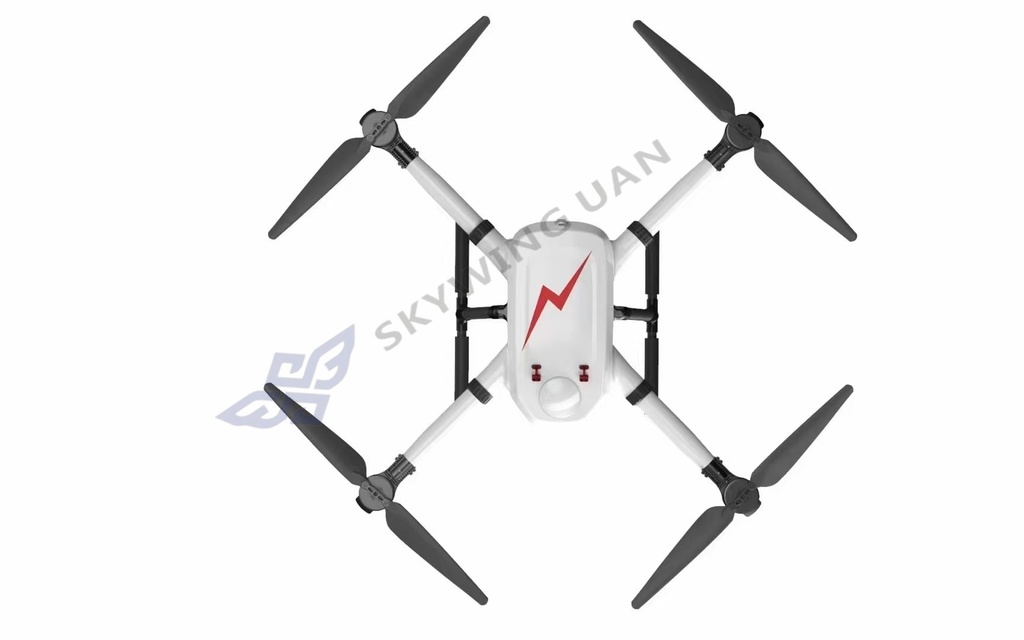

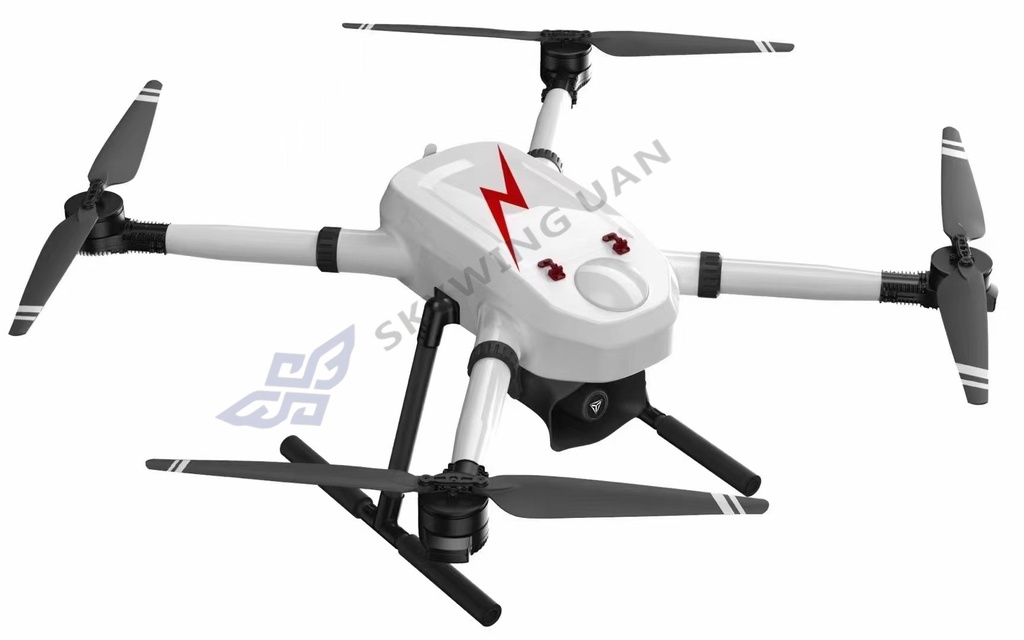

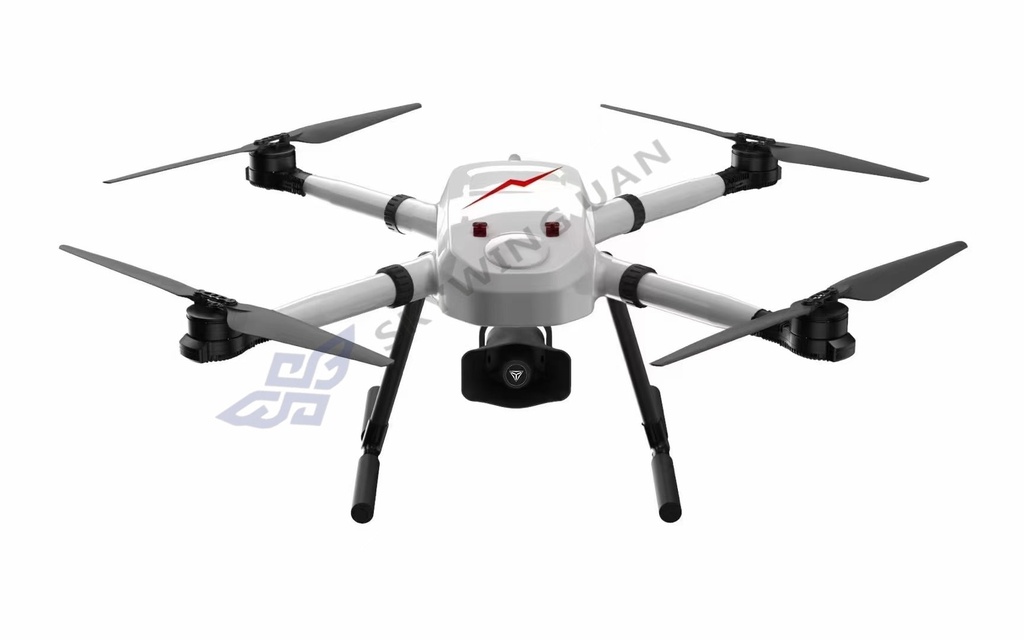

Power inspection long endurance quadrotor drone H401
Power inspection long endurance quadrotor drone H401
Adavntage H401 Hexacopter drone chassis is carbon fiber unibody molding, the overall quality of light, high strength, high toughness, high temperature resistance, good rainproof, high flight stability! Performance Parameters Fuselage Material Toray 3K Carbon Fiber Manufacturing Process High temperature and high pressure molding Thickness Regular 0.6mm Weight of casing 1.5KG Weight of housing + power unit 4.5KG Wheelbase 1000mm Expansion Dimension 1120mm*810mm*470mm Wheelbase 1200mm Unfolded Dimensions 1320mm*1200mm*470mm Folded Dimensions 460mm*420mm*470mm Battery compartment 205mm*135mm*90mm Recommended load 3-5KG Unloaded Endurance ＞ 70min Load capacity 3KG ＞ 60min Whole machine without mounting weight (Red Dot 6s 27000*2 pieces) 9KG Control Distance 30KM (handheld ground station control
Procurement note: Final configuration, selected variant, payload compatibility, export/compliance requirements, warranty, lead time, and packing details should be confirmed before purchase.
Request a Quote Browse Catalog
Adavntage
H401 Hexacopter drone chassis is carbon fiber unibody molding, the overall quality of light, high strength, high toughness, high temperature resistance, good rainproof, high flight stability!
Performance Parameters
|
Fuselage Material |
Toray 3K Carbon Fiber |
|
Manufacturing Process |
High temperature and high pressure molding |
|
Thickness |
Regular 0.6mm |
|
Weight of casing |
1.5KG |
|
Weight of housing + power unit |
4.5KG |
|
Wheelbase |
1000mm |
|
Expansion Dimension |
1120mm*810mm*470mm |
|
Wheelbase |
1200mm |
|
Unfolded Dimensions |
1320mm*1200mm*470mm |
|
Folded Dimensions |
460mm*420mm*470mm |
|
Battery compartment |
205mm*135mm*90mm |
|
Recommended load |
3-5KG |
|
Unloaded Endurance |
＞70min |
|
Load capacity 3KG |
＞60min |
|
Whole machine without mounting weight (Red Dot 6s 27000*2 pieces)
|
9KG |
|
Control Distance
|
30KM (handheld ground station control), optional 4G/5G satellite communication unlimited distance |
Suitable for mounting
About Purchase
You are free to choose buy the following drone components according to your needs:
Optional 1: Drone Frame Type: H401-F
Optional 2: Drone Frame with Propulsion System Type: H401-P (Including airframe,motor, ESC, propeller blade)
Optional 3: Drone with Ready To Fly . Type: VF20E-R
